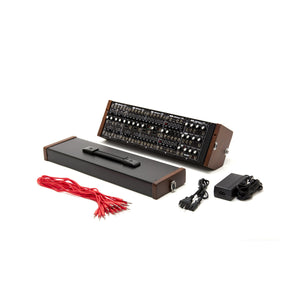

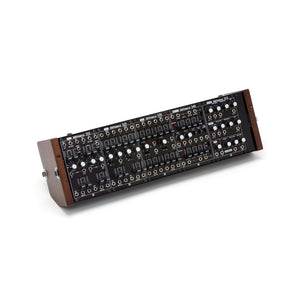

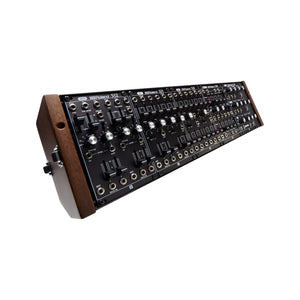

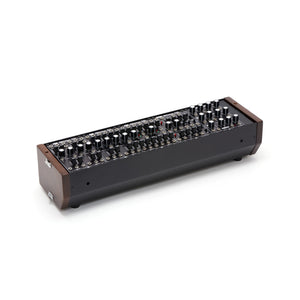

Roland System-500 Complete Set Eurorack Synthesizer System

Based on the legendary SYSTEM-700 and SYSTEM-100M, the SYSTEM-500 Complete Set is a fully analogue modular synthesizer inspired by two of the most revered electronic instruments of all time. Made for Eurorack format, it's a complete system with multiple oscillators, filters and effects in a versatile custom case with top-quality patch cables. It's perfect for your first modular synth or as the centrepiece of an expanding Eurorack system.

The SYSTEM-500 Complete Set is crafted to high standards, with top-quality components and extreme attention to detail. It delivers the classic character and playability of a vintage Roland modular synth—with all the advantages of a modern instrument. And it’s surprisingly affordable, turning the fantasy of finally owning one of these legendary instruments into reality.

Features:

• Complete analogue modular synthesizer with multiple oscillators, filters and effects
• Vintage Roland analogue sound in a top-quality modern instrument
• Perfect modular starting point complete with case, power supply, and braided patch cables
• Versatile wood and metal case is portable, stackable and can sit flat or angled
• 512 module with two voltage-controlled oscillators with saw, sine and square waves
• 521 module with two voltage-controlled filters with selectable high-pass filters
• 530 module with two voltage-controlled amplifiers each with multiple CV inputs
• 540 module with two ADSR envelopes and invertible LFO with five waveform types
• 572 module with a classic phase shifter, delay, gate delay and invertible LFO
• Numerous CV connections for an array of modulation possibilities
• Designed with Malekko in the USA. Made in Japan

Specifications

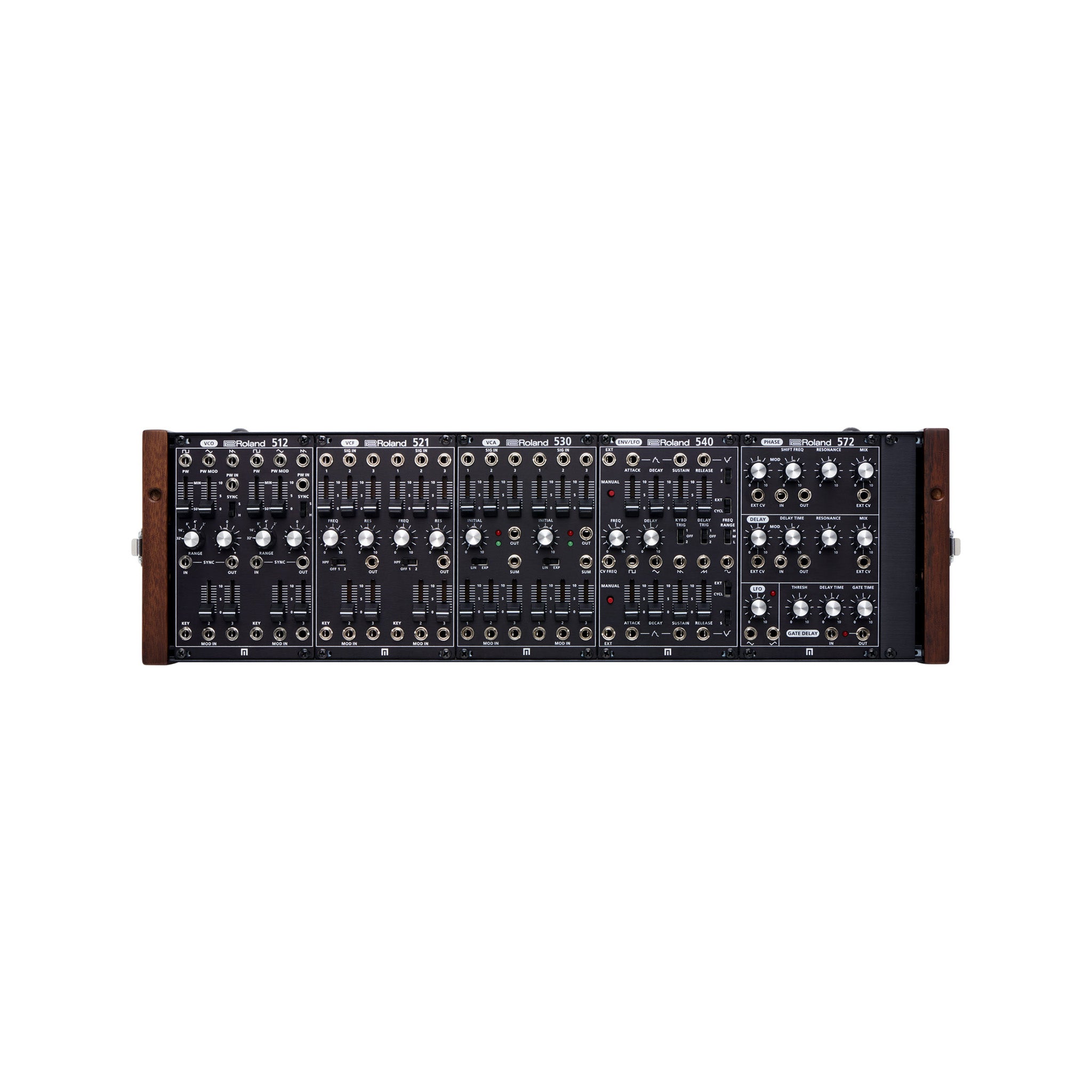

• Set Configuration: SYS-512 SYSTEM-500 VCO, SYS-521 SYSTEM-500 VCF, SYS-530 SYSTEM-500 VCA, SYS-540 SYSTEM-500 2ENV-LFO, SYS-572 SYSTEM-500 Phase Shifter/Delay/LFO, SYR-E84 EURORACK Case
• CV Input Level: -10--+10 V
• Power Supply: AC Adaptor (DC12V)
• Current Draw: 500 mA
• Accessories: Owner's Manual for SYSTEM-500, Owner's Manual for SYR-E84, Leaflet "Using the Unit Safely" for SYSTEM-500, Leaflet "Using the Unit Safely" for SYR-E84, SYS-500CS Start Guide（Sound Patch Examples, 4HP Blank Panel, Patch Cable x10, AC adaptor, Power cord
• Dimensions: 481 mm × 135 mm × 157 mm
• Weight: 3.4 kg / 7 lbs. 8 oz.
