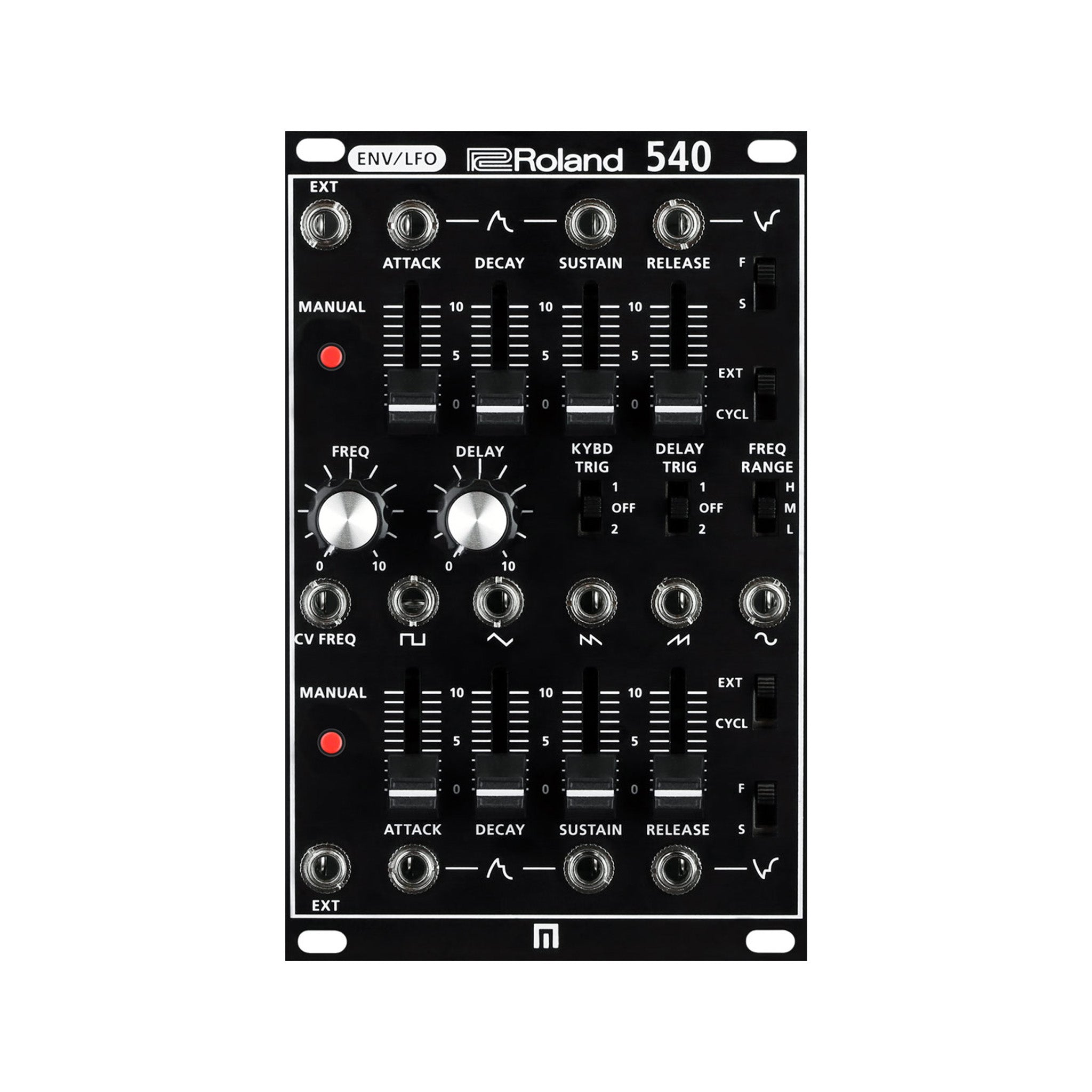

Roland System-500 540 Dual EG and LFO Eurorack Module

Based on the classic SYSTEM-100M modular synthesizer, the SYSTEM-500 is a fully analogue recreation of one of the most revered electronic instruments of all time. Newly designed in Eurorack format, the SYSTEM-500 delivers the classic character and functionality of the original with the advantages of a modern instrument. The SYSTEM-500 is made to exacting standards with top-quality components and solid controls, with a collaborative production process between Portland, USA and Hamamatsu, Japan. And it’s surprisingly affordable, turning the fantasy of finally owning this legendary instrument into reality.

Specifications

• Controllers: Attack slider, Decay slider, Sustain slider, Release slider, Manual switch, Fast/Slow switch, External/Cycle switch, Keyboard Trigger switch, Delay Trigger switch, Frequency Range switch, Frequency knob, Delay knob
• Connectors: External miniature phone type jack, Envelope 1 miniature phone type jack, Envelope 2 miniature phone type jack, Inverted Envelope miniature phone type jack, CV Frequency miniature phone type jack, Square Wave miniature phone type jack, Triangle Wave miniature phone type jack, Saw Wave miniature phone type jack, Inverted Saw Wave miniature phone type jack, Sine Wave miniature phone type jack
• Power Supply: Eurorack power
• Current Draw: 85 mA (+12 V), 50 mA (-12 V)
• Accessories: Owner's Manual, Leaflet "USING THE UNIT SAFELY", Eurorack installation screws (4 pcs), Eurorack power cable
• Dimensions: 81 mm × 58 mm × 128.5 mm
• Weight: 202 g / 8 oz
