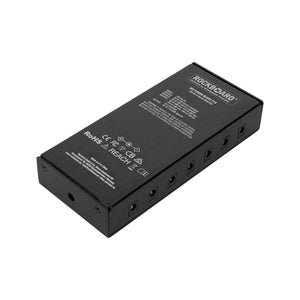

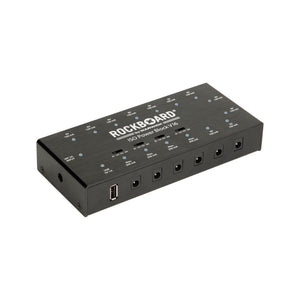

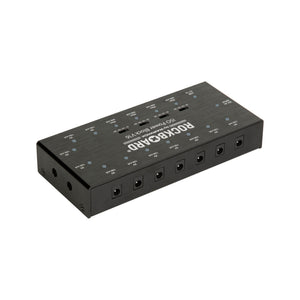

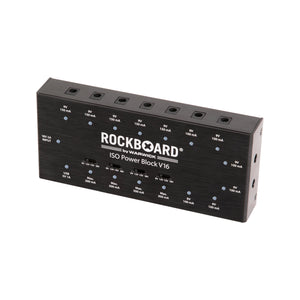

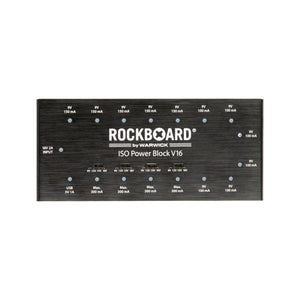

The ISO Power Blocks 16 are multi-power supplies for effect pedals and provide up to 16 electrically isolated, highly filtered power connections and a 5V USB connection. The multi-power supply is designed to provide noiseless power to up to 16 effects pedals simultaneously, even with different operating voltages.

The advanced filtering technology of the power slots effectively eliminates high-frequency noise. Separate short-circuit protection for each power slot protects the connected effects pedals from damage in the event of a short circuit. SeparateLEDs indicate short circuits for each slot separately. Should a short circuit occur, only the affected power slot is switched off, leaving the rest of the effects rig operational.

Features:

• Multi-power supply for effects pedals
• 16 transformer-isolated and highly filtered power slots
• Designed for powering up to 15 effects pedals simultaneously without any noise and charging USB devices
• Advanced filter technology prevents high-frequency noise
• External transformer prevents low-frequency interference
• Total Output Power: 27.95 W (3,550 Ma)

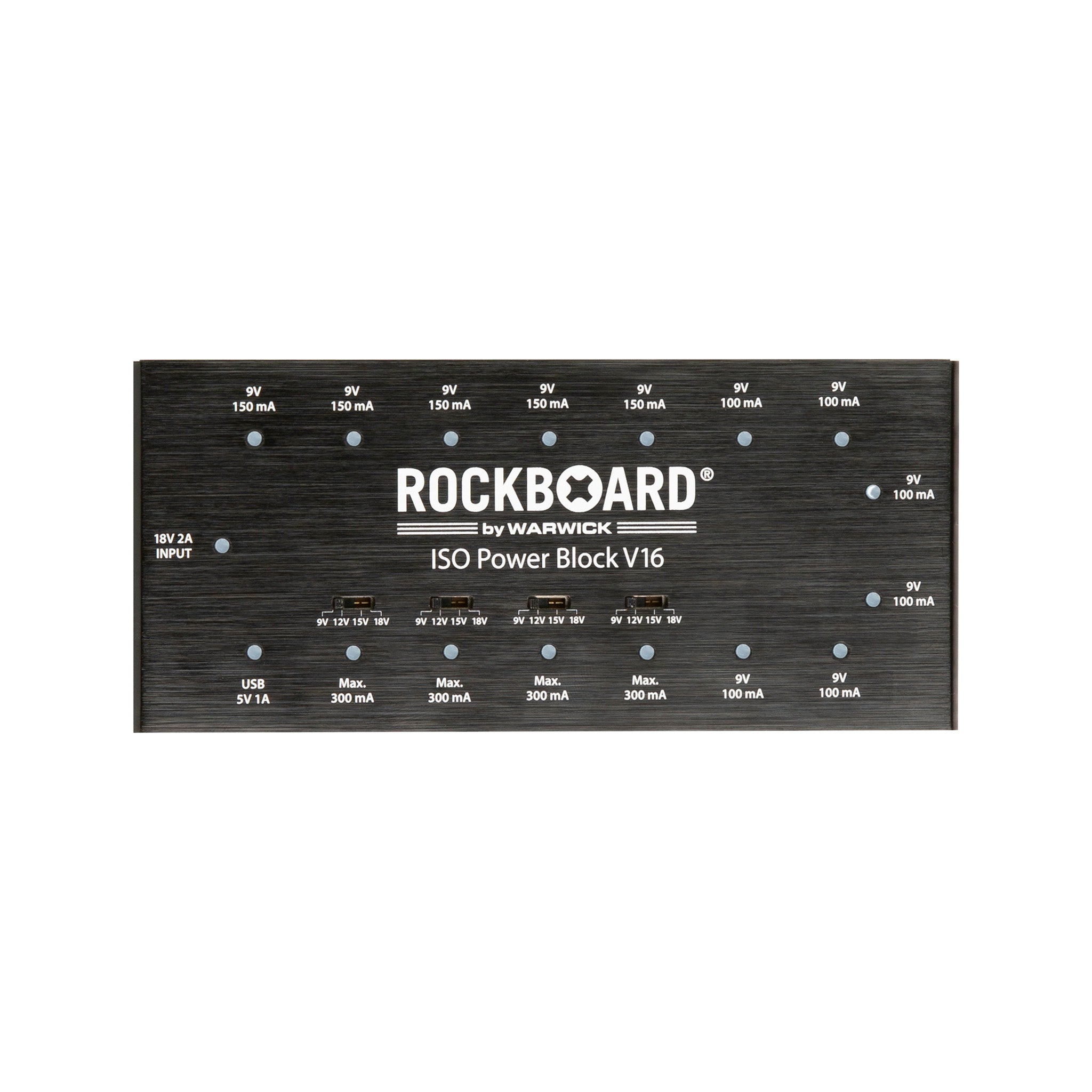

• 6x 9V DC, 100 mA Each, 2.1 X 5.5 MM Barrel Plug, Polarity (-) Center
• 5x 9V DC, 150 mA Each, 2.1 X 5.5 MM Barrel Plug, Polarity (-) Center
• 4x Switchable Slots (9V DC, 300 mA / 12V DC, 200 mA / 15V DC, 180 mA / 18V DC, 150 mA), 2.1 x 5.5mm Barrel Plug, Polarity (-) Center
• 1X USB 5V, 1 A, Type-A
• Short circuit protection for all power slots, designated red LEDs for each slot indicate short circuit or wrong polarity
• Input Voltage 18V DC

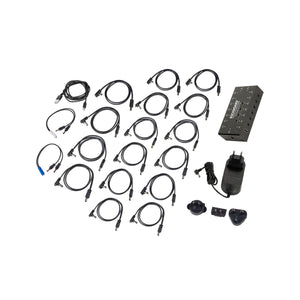

• Incl. 1X 18V DC Power Adapter (2,000 Ma) With Exchangeable Multi-Regional Plug Adapters (EU, UK, Us/CA, AU/NZ), Input Voltage 100-240V AC
• Incl. 16X Rockboard Flat Power Cable, 60 CM - For connecting effects pedals
• Incl. 1x Rockboard Power Ace Voltage Doubler Y-Cable, 20 CM / 7 7/8” (Blue) - For bridging 2 slots and doubling/combining the volt output
• Incl. 1x Rockboard Power Ace Current Doubler Y-Cable, 20cm / 7 7/8” (White) - For bridging 2 slots and doubling/combining the current output
• Dimensions: 178mm (L) x 80mm (W) x 30mm (H) / 7 1/64” (L) x 3 5/32” (W) x 13/16” (H)
• Weight: 400 g / 0.88 lbs
