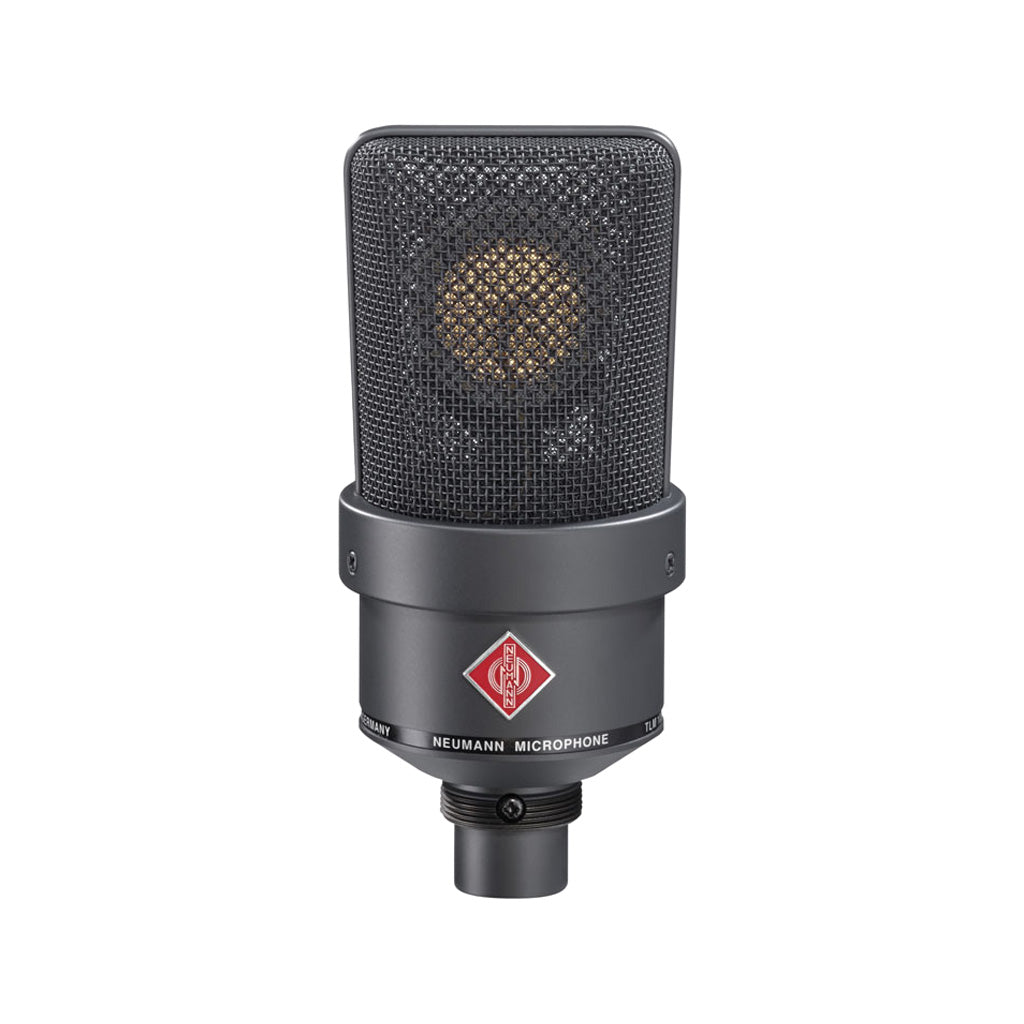

Neumann TLM 103 Large Diaphragm Cardioid Microphone, Black
Hover over image to zoom in
Drag to rotate 360
(Incl. Taxes & Shipping Cost)
About This Product
The TLM 103 has quickly become one of the biggest successes in Neumann’s history. Its pristine, clear sound is a modern update on the classic U87. The TLM 103 is a transformerless cardioid condenser microphone with a gentle presence boost for a stunningly direct sound with breathtaking definition and ultra-low noise.
Features:
- Large-diaphragm capsule derived from the classic U 87 microphone
- Balanced sound with enhanced presence
- Cardioid pattern
- Transformerless circuitry with high SPL capability
- Extremely low self-noise: only 7 dB-A
Specifications
- Acoustical operating principle: Pressure gradient transducer
- Directional Pattern: Cardioid
- Frequency Range: 20 Hz ... 20 kHz
- Sensitivity at 1 kHz into 1 kohm: 23 mV/Pa = –32.5 dBV ± 1 dB
- Rated Impedance: 50 ohms
- Rated load impedance: 1 kohms
- Equivalent noise level, CCIR: 17.5 dB
- Equivalent noise level, A-weighted: 7 dB-A
- Maximum SPL for THD 0.5%: 138 dB
- Signal-to-noise ratio, CCIR (re. 94 dB SPL): 76.5 dB
- Signal-to-noise ratio, A-weighted (re. 94 dB SPL): 87 dB
- Maximum output voltage: 13 dBu
- Supply voltage (P48, IEC 61938): 48 V ± 4 V
- Current consumption (P48, IEC 61938): 3 mA
- Matching connector: XLR 3 F
- Diameter: 60 mm
- Length: 132 mm
- Weight: approx. 450 g
Can I pre-order an item if it’s currently unavailable?
Yes! Apart from custom orders, all pre-orders/reservations require a 100% deposit or a 30% deposit with 70% Balance payment upon item arrival. Speak to our friendly Sales & Support Team about a possible reservation/pre-order today!
Does my order come with a warranty?
Yes! All orders come with warranty for a year from the date of purchase once you've registered your order details in your Swee Lee account. Log in to Swee Lee with your BandLab account and get another 6 months of complimentary warranty.
Will my order come with any accessories?
Unless stated in the product’s description, our products do not come with any accessories. You may browse our accessories online, or ask our friendly Sales & Support Team for some recommendations today!
Can I test microphone before buying it?
To maintain good hygiene practices, we do not permit the trying of microphones. Should you wish to try a vocal pedal before ordering it online, please call your favourite Swee Lee showroom before heading down, and our staff will be happy to assist!
Discover Neumann
Neumann microphones set the standard for studio recording worldwide.
