About This Product

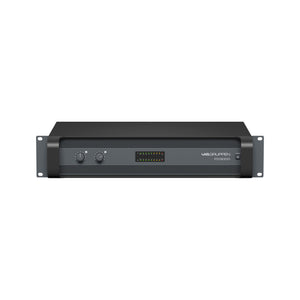

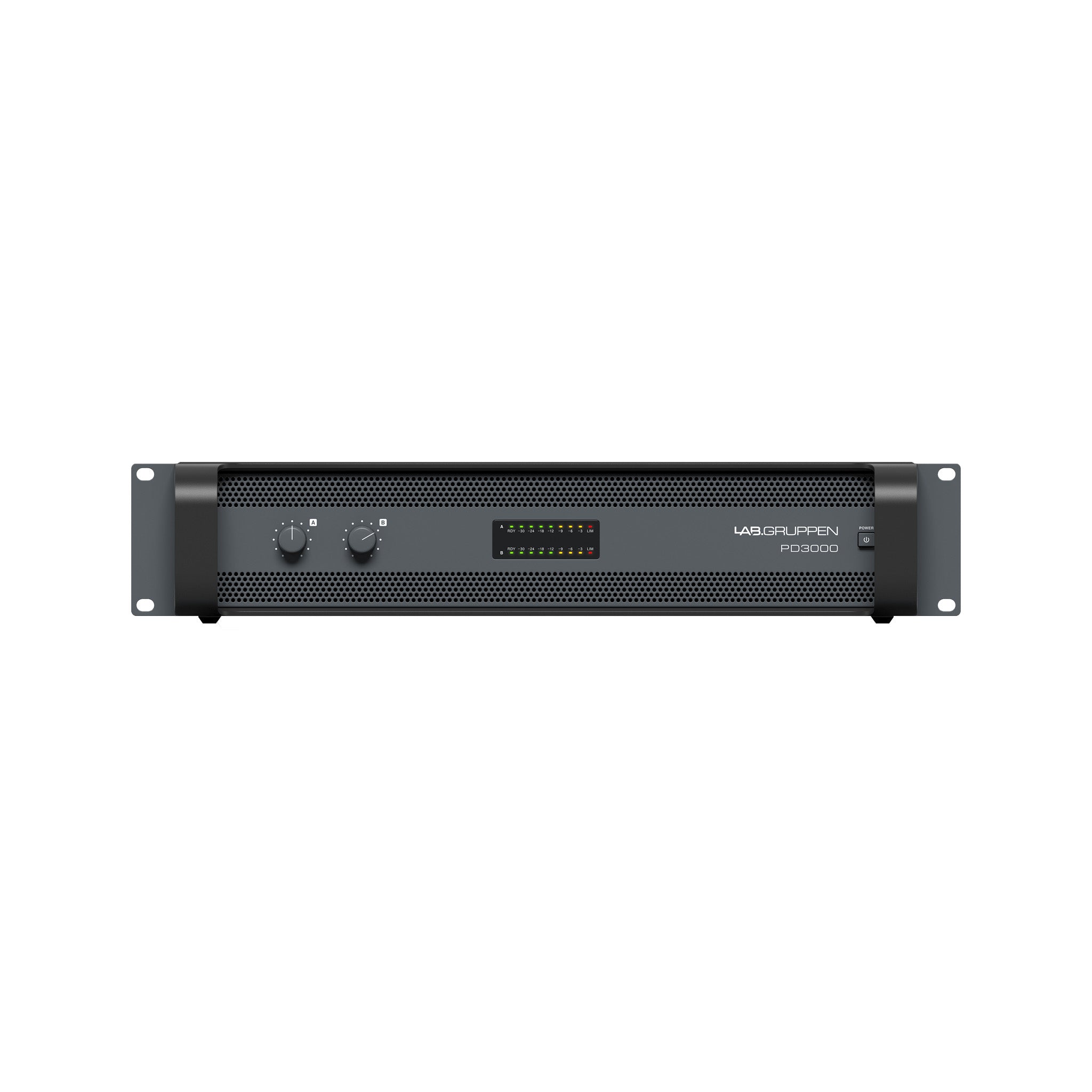

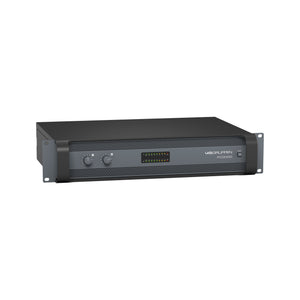

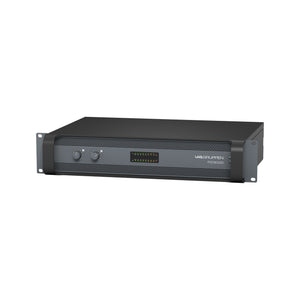

The PD3000 is a two-channel amplifier delivering 2 X 1500W of power for entry/mid-level live sound applications. PD Series amplifiers employ our unique IDEEA Class-D output stage that is ideally matched to the rated power output. To provide flexibility, each channel offers sufficient voltage swing and current capacity to drive loads in any impedance without any additional configuration. In order to have low thermal losses as well as a high voltage swing, the design is based on a permanently bridged output.
Features:
- Two-channel amplifier delivering 2 x 1,500 Watts
- Precise power management guarantees performance and efficiency
- Proven and reliable Class-D amplifier stage
- Highly efficient Switch Mode Power Supply (SMPS)
- Speaker Protect Limiter for maximum level output and reliable driver protection
- Accurate 8-segment Signal and Limit LEDs for performance monitoring
- Integrated crossover with low-cut, high-cut and full-range mode
- Comprehensive circuit protection against short circuits, DC and thermal overload
- Balanced XLR and TRS input connectors with optimised sensitivities
- Industry-standard twist-lock output connectors
- Efficient cooling with a temperature-controlled fan
- Rugged and lightweight rack mount chassis for maximum durability
Specifications
- Number of Amplifier Channels: 2

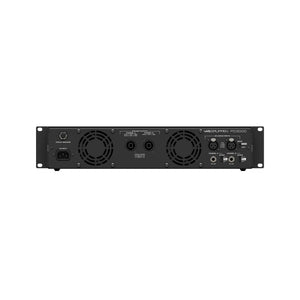

- Inputs/Link: 2 x XLR, 2 x 1/4" TRS
- Outputs: Industry-standard twist-lock speaker connector (2 x NLT4)
- Cooling: Two fans front-to-rear air flow, temperature controller speed
- Amplifier Protection: Thermal and DC protection, Rail sensing and peak current limiting.
- Load Protection: Controlled start and shutdown, behaviour, DC-fault protection, Short-circuit protection
- Dimensions: 3.7" (H) x 19" (W) x 12.8" (D) / 93mm (H) x 483mm (W) x 326mm (D)
- Weight: 6.5 kg (14.3 lbs)
