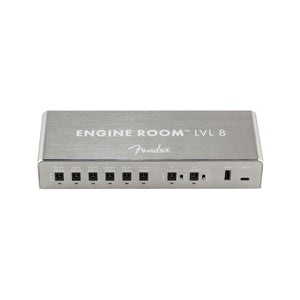

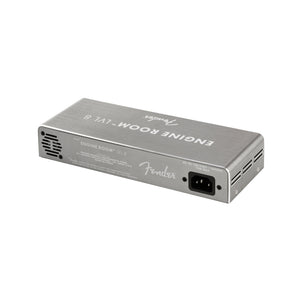

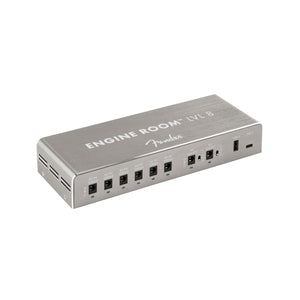

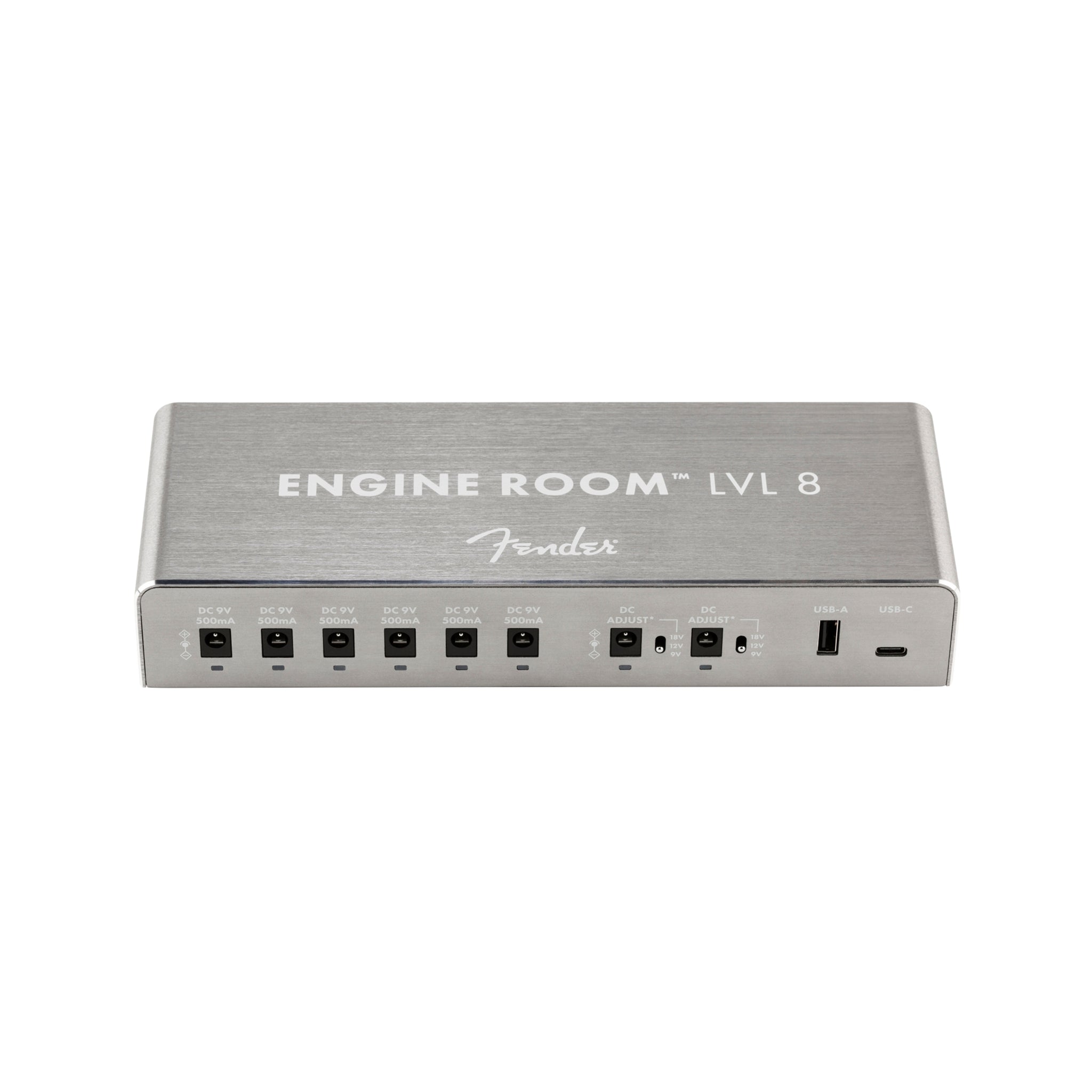

Pedals need clean isolated power and Fender’s Engine Room® LVL8 Power Supply is capable of the task. Featuring eight ground isolated power outlets, (6) are capable of delivering 9Vdc at 500mA while (2) additional outlets provide switchable voltage (9v/12v/18v) via 3-way toggle or slide switch. Perfect for performance or studio players and can be daisy-chained with our LVL12 for players looking for more tonal variety.

The Engine Room® Power Supply is designed by our in-house team of experts in Southern California. The chassis is crafted from lightweight, durable anodized aluminum, and its sleek, low-profile appearance is engineered to accommodate most pedalboards. Also features a 2-color LED indicator for each output, green indicating current consumption. Road-tested and ready for live or studio use, Fender’s Engine Room® Power Supply is built to power your performance.

Features:

• 8 ground isolated outputs – 6 outlets fixed 9Vdc at 500mA and 2 outlets with switchable voltage (9v/12v/18v)
• Global mains input voltage (100-240Vac) 50/60Hz for use anywhere in the world
• Standard IEC mains voltage connector
• Dimensions: 244mm (9.6”) W x 42mm (1.65”) H x 91.3mm (3.59”) D
• 5V USB-A and USBC output for charging smart devices

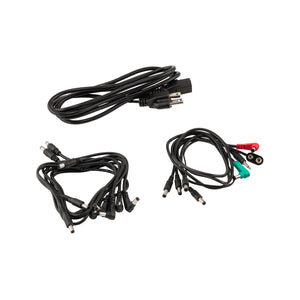

Cable Kit Includes:

• 4 x 2.1mm barrel connector 24” (60cm) length
• 2 x 2.1mm barrel connector 18” (45cm) length
• 2 x 2.1mm barrel connector 12” (30cm) length
• 1 x 2.5mm to 2.1mm barrel
• 1 x 2.5mm to 2.1mm barrel reverse polarity
• 1 x 3.5mm TS to 2.1mm barrel
• 1 x 9V Battery clip to 2.1mm barrel
