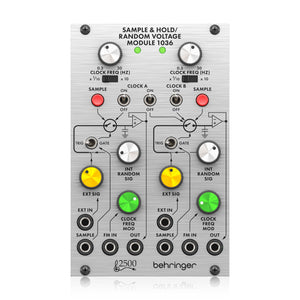

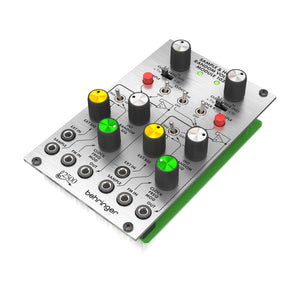

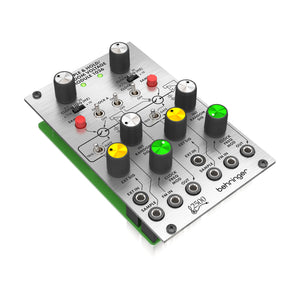

An authentic reproduction of the original “System 2500” circuitry from the 70’s that can fit in a standard Eurorack case. The best part? It’s at a very affordable price. Mix the SAMPLE & HOLD/RANDOM VOLTAGE MODULE 1036 in with your existing rig or start your modular synth journey from here. Either way you’re sure to have a lot of fun.

Features:

• Classic 1036 analog dual sample and hold module from the '70s
• Authentic reproduction of the circuitry from the "2500" Series
• Contains 2 independent sample and hold circuits, 2 random noise generators, and 2 voltage-controlled clocks
• Produces random tone sequences, scales and arpeggios
• Audio signal input and output for each Sample and Hold circuit with a sample command input to control the timing of samples from different sources
• Clock Frequency control adjusts the frequency of each clock and the sampling rate
• Manual sample control is available using momentary push buttons
• Sampling can also be controlled externally via a trigger or gate signal using the external input connection
• An internally generated random signal can be used as the sampled signal with an adjustable level control for each circuit
• Eurorack specs: 16 HP, XX mA +12 V, XX mA -12 V
