Audio-Technica Headshell/Cartridge Combo Kit AT-VM95C/H
Hover over image to zoom in
Drag to rotate 360
(Incl. Taxes & Shipping Cost)
About This Product

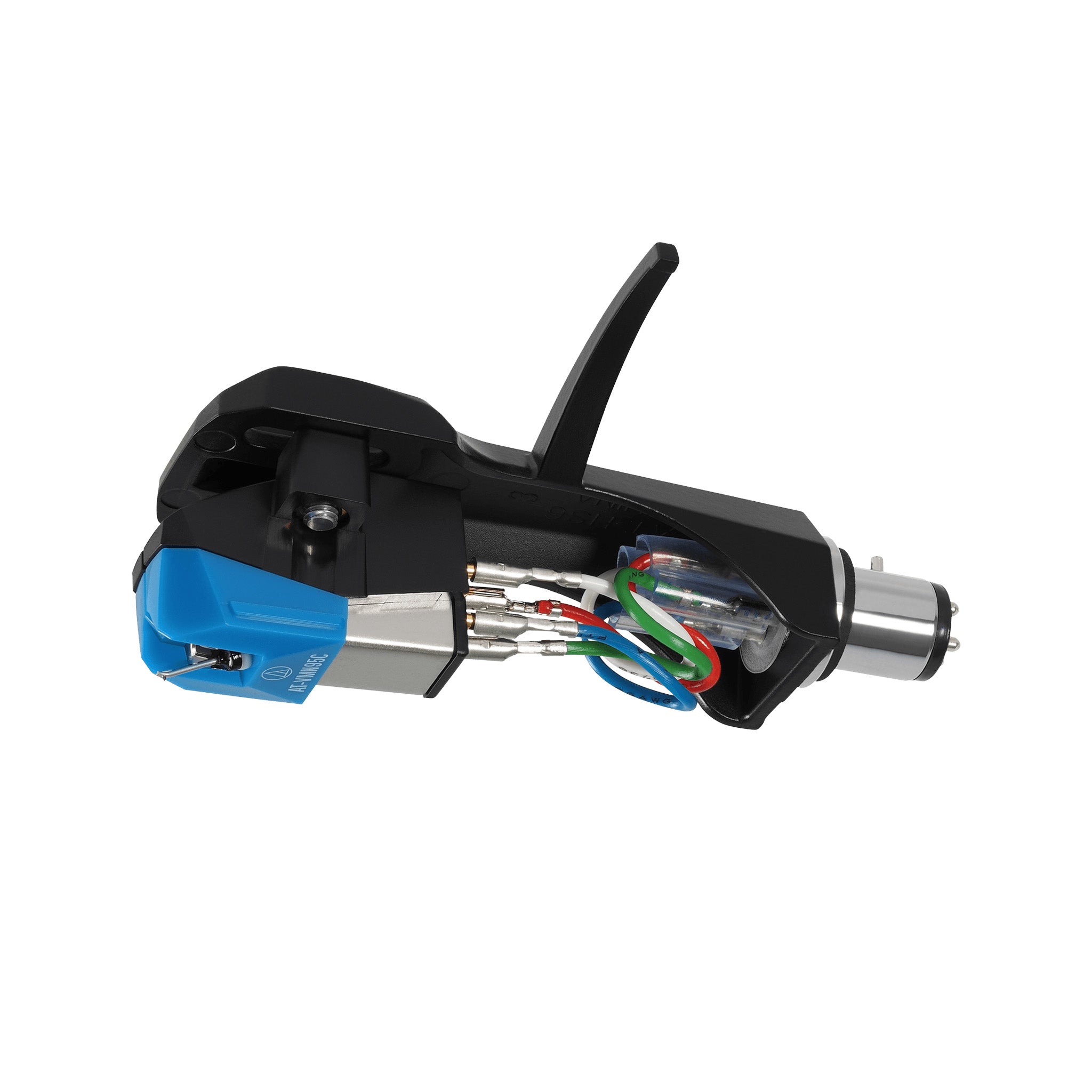

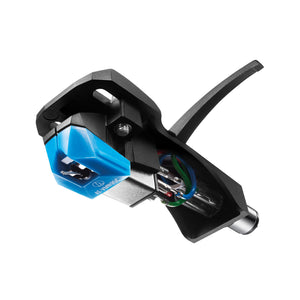

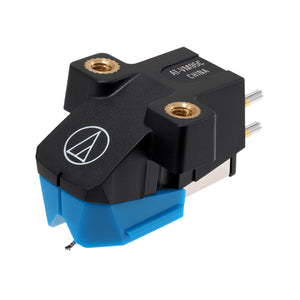

The AT-VM95C/H combo kit includes the AT-VM95C dual moving magnet cartridge premounted on the AT-HS6BK headshell.
Features:
- VM dual magnet cartridge with 0.6 mil conical stylus
- Aluminium cantilever
- Specially wound coils increase output voltage
- Durable low-resonance polymer housing
- Threaded inserts in the cartridge body enable the cartridge to be mounted to the headshell with just two screws – no nuts or washers required
- Compatible with any AT-VMN95 replacement stylus

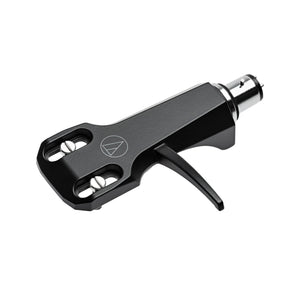

- Universal ½"-mount headshell for 4-pin turntable cartridges
Specifications
- Frequency Response: 20-20,000 Hz
- Channel Separation: 18 (dB at 1 kHz)
- Vertical Tracking Angle: 23°
- Vertical Tracking Force: 1.8-2.2 g (2.0 g standard)
- Stylus Construction: Bonded round shank
- Recommended Load Impedance: 47,000 ohms
- Coil Impedance: 3.3 k ohms (1 kHz)
- DC Resistance: 485 ohms
- Coil Inductance: 550 mH (1 kHz)
- Output Voltage: 4.0 mV (1 kHz, 5 cm/sec.)
- Output Channel Balance: 2.5 dB (1 kHz)
- Stylus Shape: 0.6 mil conical
- Cantilever: Aluminum pipe
- Static Compliance: 17 x 10 – 6 cm / dyne
- Dynamic Compliance: 6.5 x 10 – 6 cm / dyne (100 Hz)
- Mounting: Half-inch
- Accessories Included: Two 11 mm Installation Screws, Two 8 mm Installation Screws, Two Washers
- Model: AT-VM95C/H
- Mounting Feature: Half-inch mount
- Recommended Load Capacitance: 100 to 200 pF
- Replacement Stylus: AT-VMN95C
- Stylus Size: 0.6 mil
- Type: VM Stereo Dual Magnet
- Wire Used for Coil: T.P. Copper
- Dimensions: Cartridge 17.2 mm (0.68") H × 18.9 mm (0.74") W × 28.3 mm (1.20") D; Cartridge & Headshell 21.2 mm (0.83") H × 21.4 mm (0.84") W × 62.4 mm (2.46") D
- Weight: Cartridge 6.1 g (0.22 oz); Cartridge & Headshell 15.5 g (0.55 oz)
