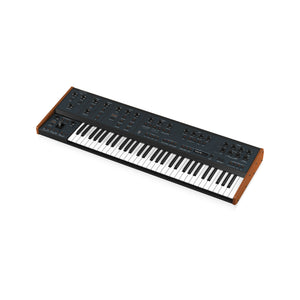

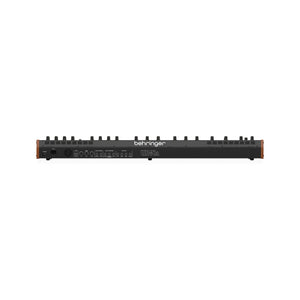

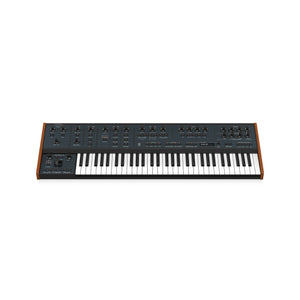

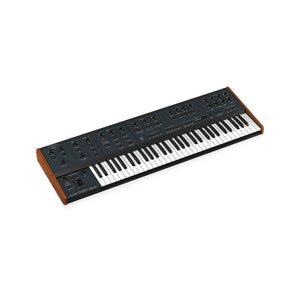

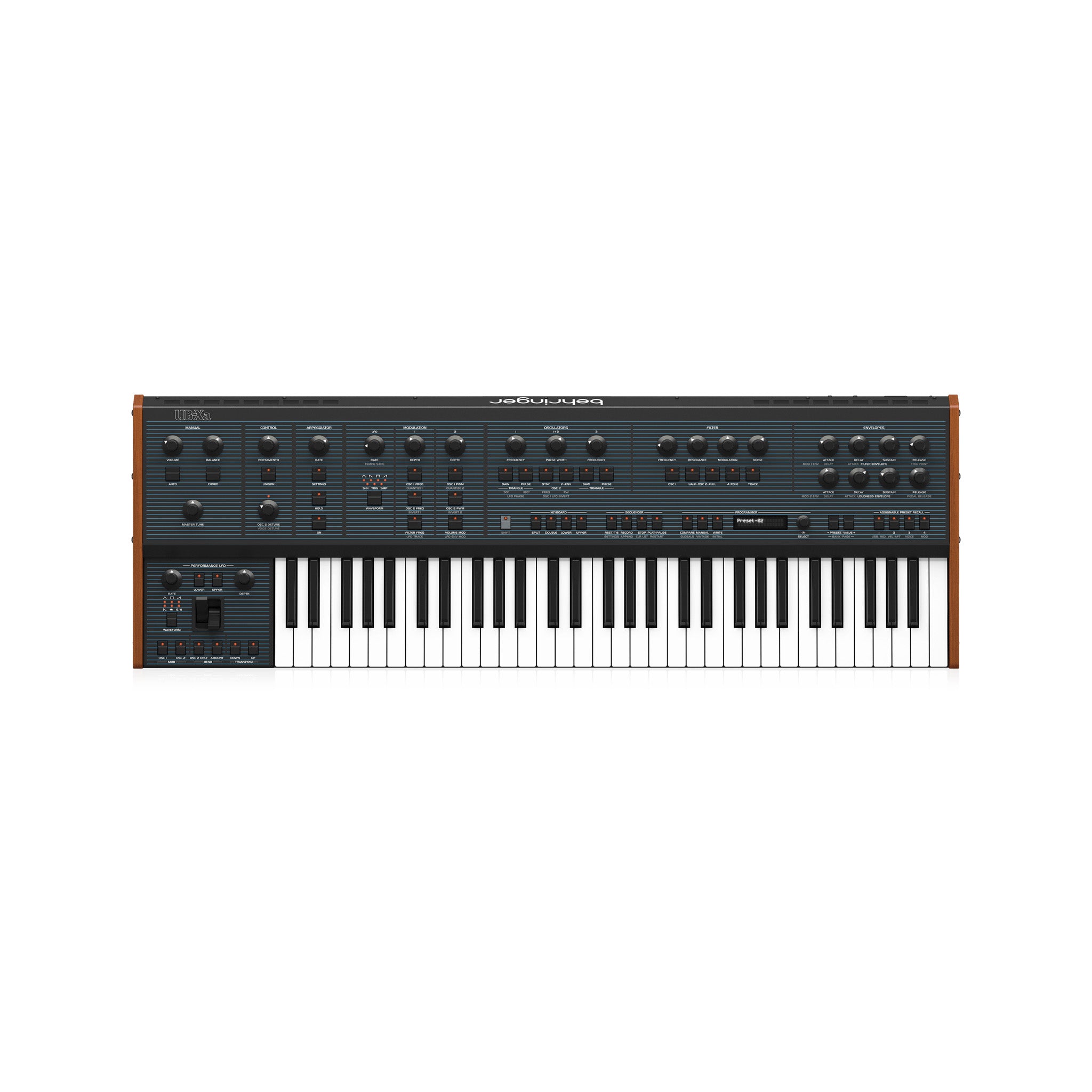

Behringer UB-Xa 16-voice Bi-timbral Polyphonic Analog Synthesizer

Embrace the legacy and make your mark on history with the UB-Xa from Behringer. More than just a recreation of a classic synthesizer, we’ve made sure that the UB-Xa has all the bells, whistles and characteristics that came with the original, but it’s also filled to the brim with modern features such as velocity and after-touch, 512 user program memories and comprehensive MIDI implementation. This makes for a well-rounded synth that’ll make friends with anything in your setup.

Features:

• Analog polyphonic synthesizer and authentic reproduction of classic OB-Xa including original factory patches
• Vintage mode allows the selection of 8 synthesizer signatures including OB-Xa, OB-8 and more
• 16 voices with 2 VCOs per voice and oscillator sync mode
• The multi-timbral capability allows the splitting or layering of 2 different sounds
• VCOs and VCFs based on reproductions of original 3340 and 3320 semi-conductor designs
• Both VCOs generate sawtooth, triangle or square waveforms with variable pulse width
• Selectable dual-slope 12/24 dB analogue low-pass filter per voice with adjustable resonance
• 61 semi-weighted full-size keys featuring poly after-touch and velocity sensitivity
• Flexible 8-channel modulation matrix for dramatic expansion of sonic possibilities
• Dual-layer arpeggiator and sequencer with real-time sequence transpose
• Velocity and after-touch can be optionally used for more expressive performance
• 2 dedicated LFOs with 7 waveform shapes for modulation of pulse width, oscillator pitch and filter cutoff frequency
• 2 ADSR generators per voice for control of VCF and VCA
• Stereo VCA per voice to allow control over voice/layer panning
• 26 rotary controls give direct and real-time access to all important parameters
• High-quality LCD Display with encoder for rapid parameter editing
• Assignable preset recall switches for immediate program selection
• Spring-loaded pitch and assignable modulation paddles provide total hands-on performance
• 512 user program memories with a “compare and match” feature to quickly match all analogue controls to stored program values
• Fully servo-balanced outputs for the highest signal integrity
• CV/pedal inputs for connection to expression pedals and footswitches
• MIDI Polyphonic Expression (MPE) to enable multidimensional controllers and multiple parameters per note
• Comprehensive MIDI implementation (including NRPN/CC control of all parameters and bulk load/save)
