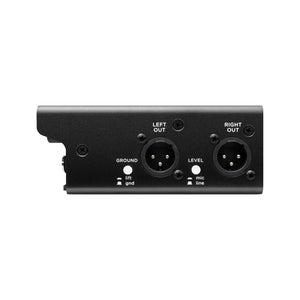

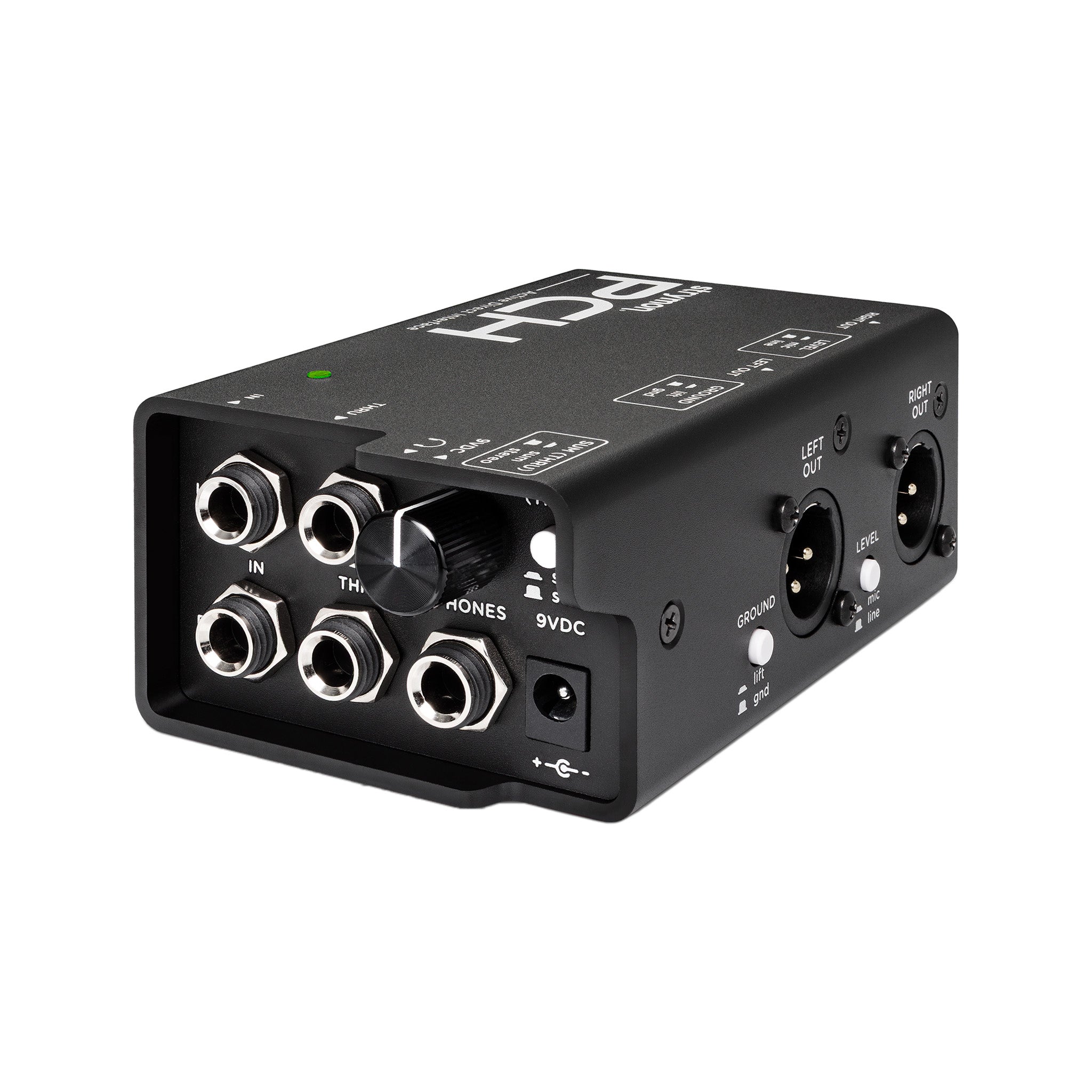

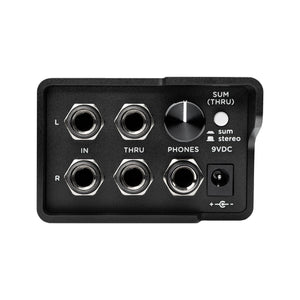

Strymon PCH Active DI w/Headphone Amp
(Incl. Taxes & Shipping Cost)
PCH is an advanced stereo active direct interface with a hidden superpower – an onboard console-quality headphone amplifier. Now you can rest easy knowing that the sound of your pedalboard won’t change even a little when passing through PCH, and the headphone amp means you won’t have to ask anyone how you sound.
No matter what instrument or genre of music you play, if you need to connect unbalanced outputs to a PA, recording interface or flat response speaker system, PCH is the ultimate choice for an absolutely transparent stereo direct interface — and it’s the only one that you can listen to locally via the headphone amp.
Features:
- Runs on 9VDC — internally converted to 24V to be virtually unclippable
- Onboard headphone amplifier powerful enough to drive high impedance headphones cleanly
- Switchable Mic/Line level operation for the XLR outputs
- Defeatable ground lift for the XLR outputs
- Defeatable Sum for the Thru outputs
- Powered by a custom single-channel internal Ojai power supply
- Internal supply’s custom transformer provides galvanic isolation
- Extremely flat frequency response
- Extremely low total harmonic distortion
- Thick 3mm extruded aluminium external shell with 5mm ribs for bulletproof protection
- Shell awning design protects headphone volume pot while allowing easy access to jacks
- High quality long life jacks and switches
- Input: 1 MΩ Input Impedance, +20dBu Max Input Level
- Thru: 100 Ω Output Impedance, +135dB (A-Weight) SNR, -115dBV (10-22kHz no A-Weight) Noise Floor, +0dB Gain Relative to Inputs, +/- 0.25dB, 10Hz – 80kHz+ Frequency Response
- Headphone Out: 2 Ω Output Impedance, +/- 0.25dB, 10Hz – 80kHz Frequency Response
- XLR (Line Setting): 275 Ω Output Impedance, +130dB (A-Weight) SNR, -110dBV (10-22kHz no A-Weight) Noise Floor, +0dB Gain Relative to Inputs, +20dBu Maximum Output Level, +/- 0.25dB, 10Hz – 80kHz+ Frequency Response
- XLR (Mic Setting): 100 Ω Output Impedance, -20dB Gain Relative to Inputs, +0.0dBu Maximum Output Level, +125dB SNR, -125 dBV (10-22kHz no A-Weight) Noise Floor, +/- 0.25dB, 10Hz – 80kHz+ Frequency response
- Power: 9V DC
- Current Draw: 500 mA
- Dimensions: 2.97" (W) x 1.94" (H) x 4.88" (L) / 76mm (W) x 50mm (H) x 124mm (L)
