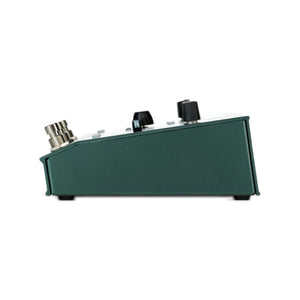

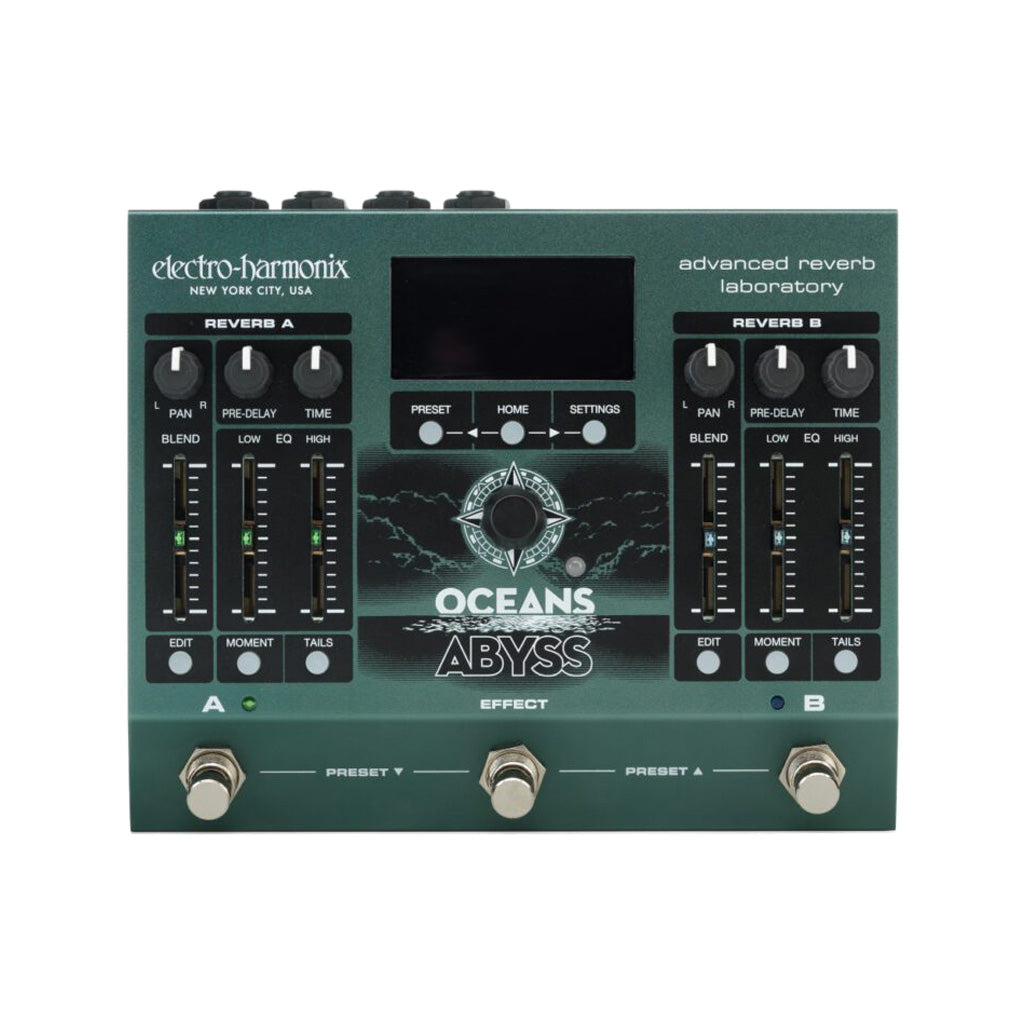

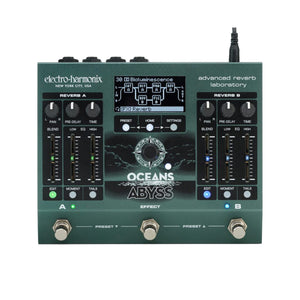

Electro-Harmonix Oceans Abyss Dual Stereo Reverb Guitar Pedal

The Oceans Abyss expands on Electro-Harmonix’s highly acclaimed reverb technology to deliver a truly immersive effects workstation. The pedal is centered around dual reverb engines that are independently programmable with all-new full-stereo algorithms including Hall, Spring, Shimmer and more. Place these reverbs into a customizable signal path with additional FX blocks like Delay, Chorus, Tremolo, or Bit Crusher for a completely unique soundscape buildingexperience.

Features:

• Two Stereo Reverbs available at once, each fully pannable in the stereo field
• 10 reverb types to choose from: Room, Hall, Spring, Plate, Reverse, Dynamic, Auto-Infinite, Shimmer, Polyphonic, Resonant
• Additional FX blocks: Delay (Digital, Analog and Tape emulations), Tremolo, Chorus, Flanger, Phaser, Graphic EQ, Saturation, Bit Crusher, External FX Loop, Volume
• Create custom signal path routing with up to 8 effects blocks. Two blocks may be re-verb, the rest may be any of the additional FX blocks.
• Infinite reverb sustain with the press of a footswitch

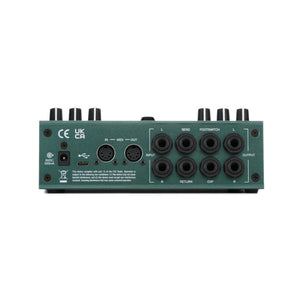

• Stereo Audio I/O
• Stereo FX Loop routing on TRS Jacks
• Dual action footswitches allow for momentary or latching use
• Easily enable or disable tails
• 128 fully customizable presets
• All controls can be saved to presets
• Dive deep into global and preset settings to set up Oceans Abyss for your specific needs
• Illuminated slide pots and buttons
• High-visibility OLED graphical display
• Multiple graphical views: Signal Path, Performance, Settings, Physical, Explorer
• Easy-to-navigate menu system
• Ergonomic NavCoder knob allows rotary and directional navigation through menus
• EXPRESSION / CV input to control nearly any parameter in any FX block
• Footswitch input allows for adding up to three external footswitches, each assigna-ble to a number of functions
• MIDI In and Out. MIDI IN supports PC, CC (over nearly every available parameter), and Tempo Clock
• USB-C port to connect to Windows or Mac and interface with EHXport™ app (coming soon)
• 96kHz / 24-bit sample rate conversion
• Supplied with 9.6VDC / 500mA power supply
